Screws

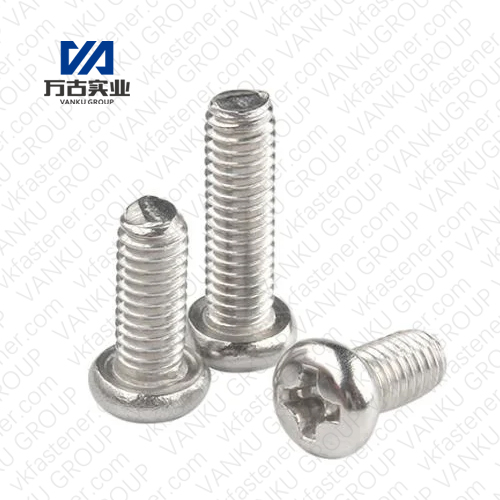

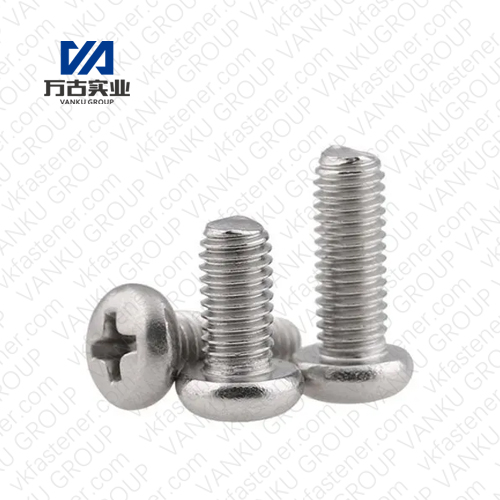

Cross Recessed Raised Cheese Head Screw

Main Features

  • Main Parameters
  • FAQ

<

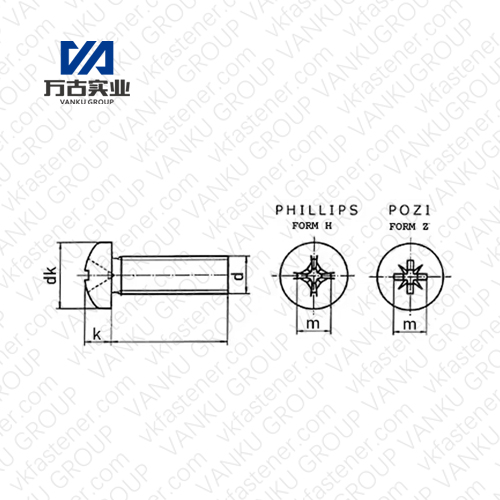

d thread sizePdk nom=maxk nom=maxrecess No.m Type H ref.m Type Z ref.
M 1.60.353.21.301.81.8
M 20.441.602.52.4
M 2.50.455212.72.6
M 30.562.413.13
M 3.50.672.724.24
M 40.783.124.64.3
M 50.8103.825.35
M 61124.636.86.7
M 81.25166498.8
M 101.5207.5410.29.9







Slot TypeH/Z
SizeM3-M10
Length5-80mm
Class4.8/5.8/6.8/8.8,A2/A4-70/80
MaterialCarbon/Alloy/Stainless steel,Brass/Copper,Ti
SurfacePlain/Black/Zinc/Dacromet/Geomet/Nikel/Chrome/Nylok
