Bolts

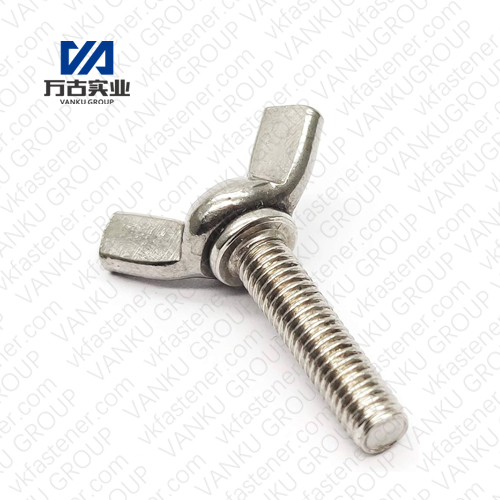

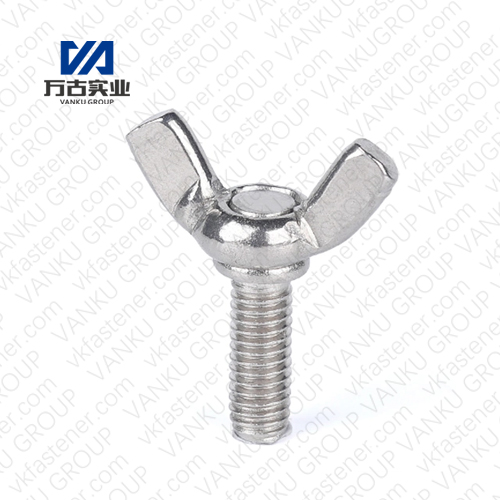

Wing Screws with Edged Wing

Main Features

  • Main Parameters
  • FAQ

<

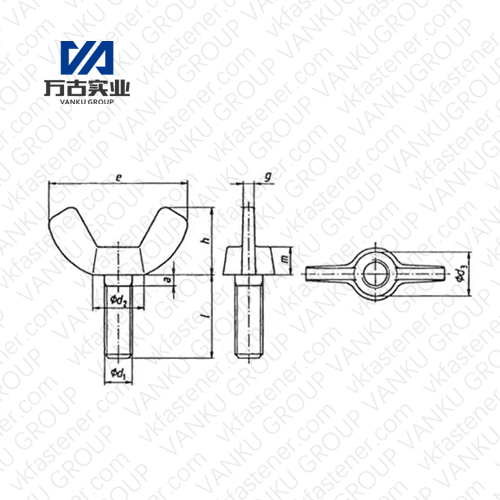

d thread sizeM 4M 5M 6M 8M 10M 12
P0.70.811.251.51.75
a max2.12.4344.55.3
e min1924.529354763
h min91114172229
g min1.11.51.523.64.1
d2 min7911131821
d3 min5.57.5910.51417
m min3.2456.5810







SizeM4-M12
Length6-60mm
MaterialCarbon/Stainless steel
SurfacePlain/Zinc
